Is a ground rod the same as a grounding electrode?

No. A ground rod is one type of grounding electrode. A grounding electrode can also be part of a building structure or another conductive system connected to earth.

Where does a grounding electrode connect?

A grounding electrode connects to the electrical service through a grounding electrode conductor. The connection typically occurs at service equipment or another designated grounding point.

Can a grounding electrode protect against every electrical fault?

No. A grounding electrode supports the grounding system, but circuit grounding conductors and overcurrent devices help clear faults within the electrical installation.

Glossary

What Is a Grounding Electrode?

A grounding electrode is a conductive object that connects an electrical system to the earth. The connection gives fault current and electrical surges a path away from people and equipment. Common electrodes include ground rods, metal water pipes, and concrete-encased conductors. The electrode forms one part of a complete grounding system.

Quick Facts About Grounding Electrode

Key Takeaways About Grounding Electrode

The electrode connects the system to earth.
A ground rod is one possible electrode.
An electrode is not the same as a grounding conductor.

How Grounding Electrode Works

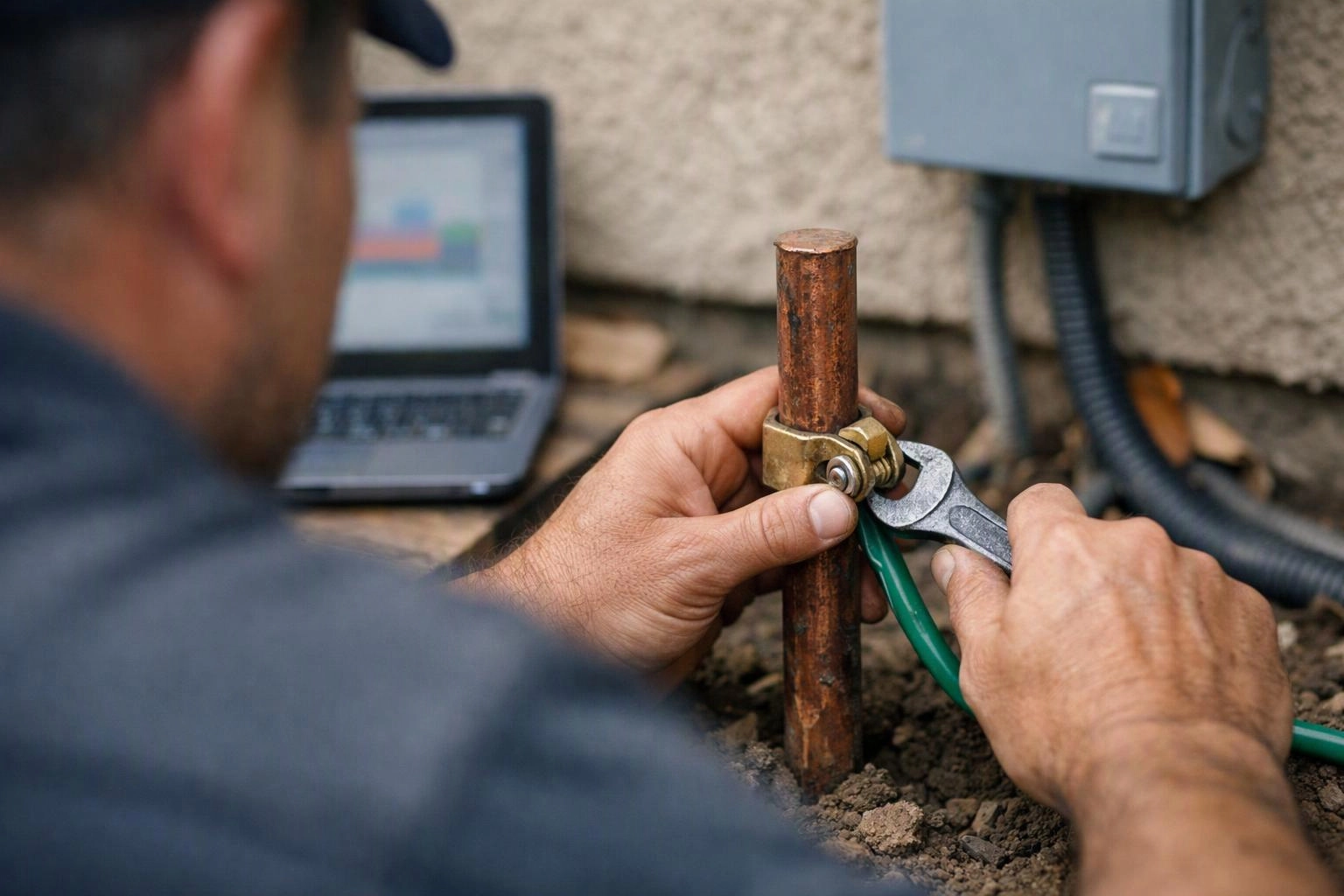

A worker tightens a brass clamp on a copper pipe with a wrench beside a laptop and wall panel outdoors

A grounding electrode provides a connection between an electrical system and the earth. A grounding electrode conductor links the service equipment to the electrode. Together, these parts help direct unwanted electrical energy away from the electrical installation.

Related glossary terms: Ground Rod, Electrical Load, Neutral Wire.

The electrode may be a ground rod, metal building steel, a concrete-encased conductor, or another approved conductive structure. The site and building design affect which electrode is present. An electrode does not replace circuit grounding conductors, bonding, or overcurrent protection. Those parts perform different jobs within the grounding system.

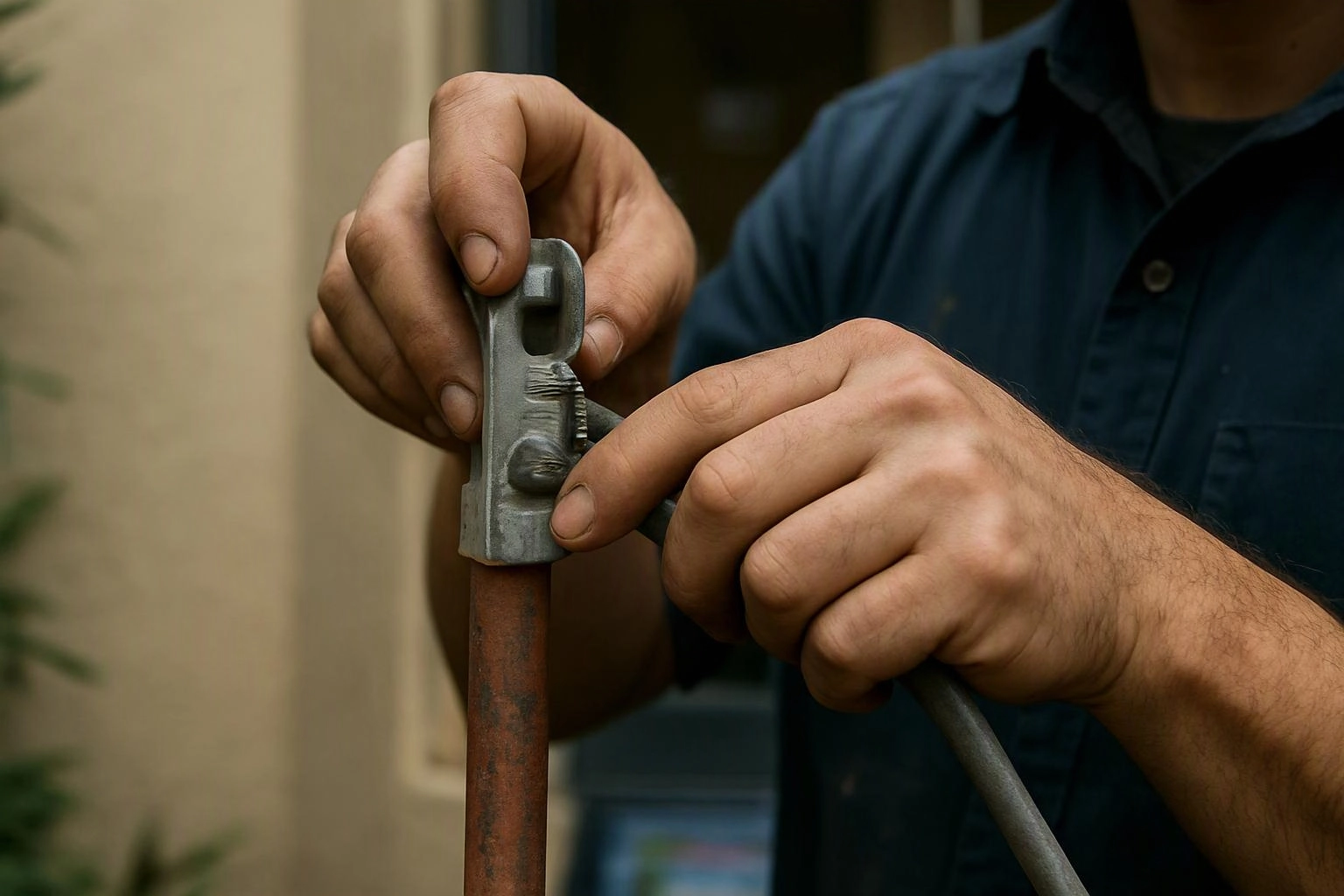

A person grips a metal pipe fitting and a hose, tightening it outdoors against a beige wall

From the Center Electric Service team

When we work on electrical grounding installation, we inspect the available electrode and its connection to the service equipment. We check that the grounding electrode conductor follows a clear path and that connections remain accessible for inspection. We also look for damaged, loose, or altered components.

Grounding Electrode in Practice: A Real-World Example

A Riverside home may need an electrical grounding installation after a service upgrade. The work can include identifying the existing grounding electrode, checking its connection, and installing or correcting the grounding electrode conductor when the system requires it.
