What Is A Circuit Overload?
A circuit overload is a condition in which connected electrical demand exceeds the circuit’s safe capacity. The excess demand can heat conductors and cause the circuit breaker to trip. Overloads often develop when several high-demand appliances share one circuit, or when added equipment exceeds the circuit’s intended design.
Quick Facts About Circuit overload
Category
Electrical fault condition
Used for
Troubleshooting repeated breaker trips
Common confusion
Often confused with a short circuit
Also called
Overloaded circuit
Often discussed with
Electrical Troubleshooting
Key Takeaways About Circuit overload
- An overload affects a circuit’s total demand.
- A tripped breaker may signal repeated excessive loading.
- An overload is not the same as a short circuit.
How Circuit overload Works
Circuit overload occurs when the combined demand from connected loads becomes too high for the circuit conductors and protective device. A breaker responds by opening the circuit, which stops current flow through that branch. The trip may happen immediately or after the load remains high for a period of time.
Related glossary terms: Dedicated circuit, Electrical load calculation, Main breaker.
Electrical troubleshooting looks at what was operating when the breaker opened, how equipment is distributed, and whether the circuit serves its intended purpose. A portable heater, microwave, and other demanding appliance on one branch can create an overload. A dedicated circuit may be appropriate for equipment that needs its own supply, while a short circuit involves an unintended low-resistance path.
From the Center Electric Service team

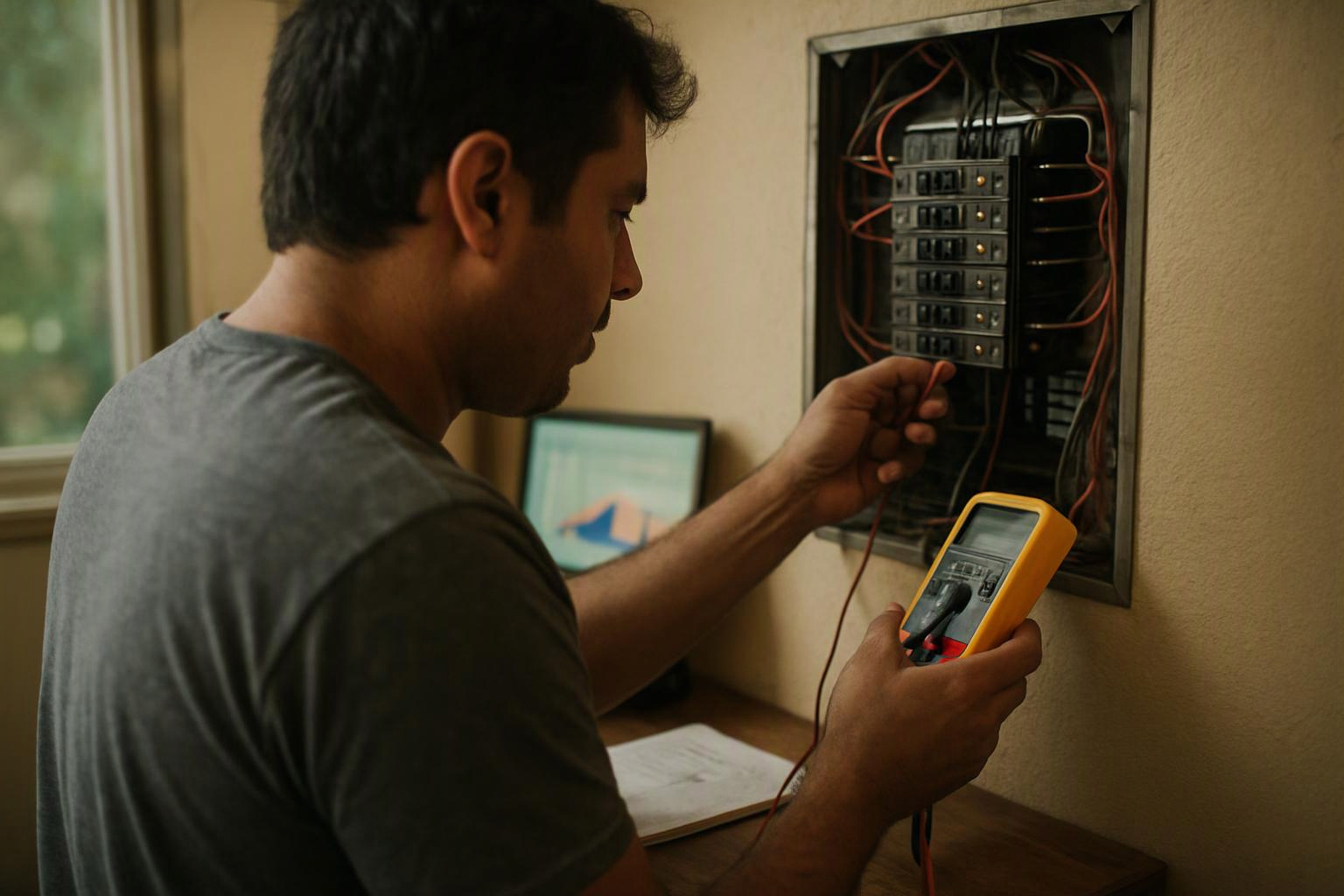

When we investigate a suspected circuit overload, we identify the connected loads and check when the breaker trips. We inspect connections, conductor sizing, and panel labeling as part of the troubleshooting process. Our team also checks whether a new appliance changed the circuit’s normal demand.
Circuit overload in Practice: A Real-World Example
A Riverside home may have a kitchen circuit serving a microwave, toaster oven, and other appliances. If the breaker trips when several appliances run together, the combined demand may be overloading that circuit.
