What Is a Dedicated Circuit?
A dedicated circuit is an electrical branch circuit that serves one appliance or load without sharing its conductors with other equipment. A circuit breaker protects the wiring, while the circuit connects the load to the electrical panel. This arrangement helps match circuit capacity to equipment demand and limits nuisance tripping.
Quick Facts About Dedicated circuit
Category
Electrical branch circuit
Used for
Major appliances and high-demand equipment
Common confusion
An isolated outlet is not always a dedicated circuit
Also called
Dedicated electrical circuit, Dedicated branch circuit
Often discussed with
Electrical Code Correction
Key Takeaways About Dedicated circuit
- One circuit serves one appliance or electrical load.
- The breaker and wiring must suit the connected equipment.
- A dedicated outlet does not always mean a dedicated circuit.
How Dedicated circuit Works

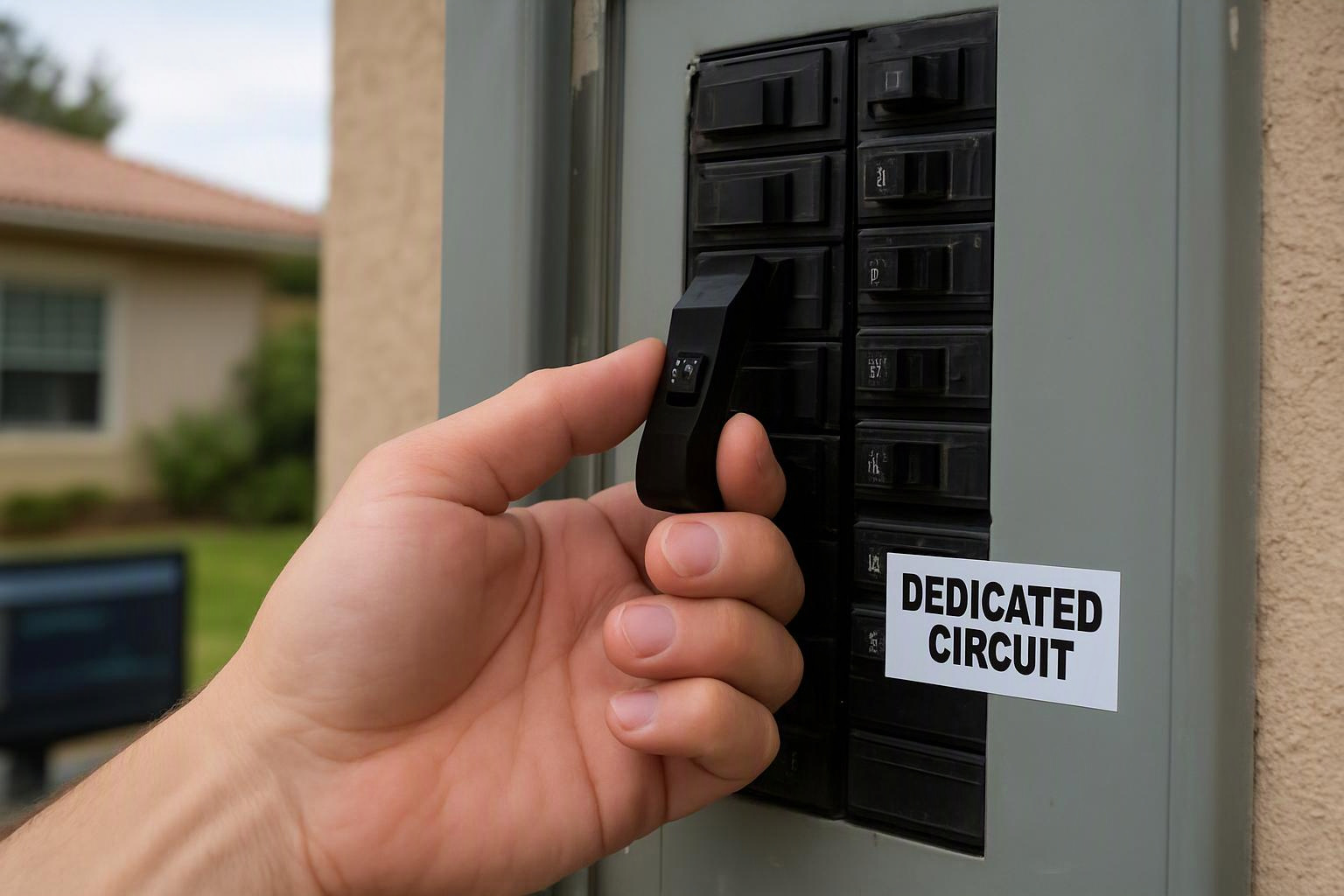

A dedicated circuit carries power from a breaker in the electrical panel to one specified load. The circuit includes the hot conductors, neutral where required, grounding path, overcurrent protection, and connected equipment. The wiring and breaker must suit the load and the path’s installation conditions.
Related glossary terms: Electrical load calculation, Circuit overload, Main breaker.
A branch circuit can feed receptacles, fixed equipment, or an appliance connection. A dedicated arrangement keeps other loads from drawing power through the same conductors. For example, an electric range may have its own circuit, while nearby countertop receptacles use another circuit. A panel inspection can trace the cable, breaker, and connected outlets to confirm how the circuit is arranged.
From the Center Electric Service team
When we inspect a suspected dedicated circuit, we trace the conductors from the panel to the connected equipment. We also check the breaker, wire condition, terminations, and any shared outlets. During Electrical Code Correction work, that inspection helps us identify overloaded arrangements and correct circuit connections.
Dedicated circuit in Practice: A Real-World Example
An electric range may need a dedicated circuit so other kitchen receptacles do not share its wiring. During an Electrical Code Correction visit, the circuit arrangement can be checked at the panel and at the appliance connection.
