Can an AFCI protect every electrical problem?

No. An AFCI targets electrical arcing, while other devices address overloads, short circuits, or current leakage. A complete inspection considers each type of protection separately.

Why might an AFCI trip repeatedly?

Repeated AFCI trips can result from damaged wiring, loose connections, a faulty device, or an appliance that creates an arcing pattern. Testing helps identify the source.

Where is AFCI protection located?

AFCI protection is commonly located at the electrical panel as a breaker or at a receptacle. Its location depends on the circuit design and installation.

Glossary

What is AFCI?

An AFCI, or arc-fault circuit interrupter, is a protective device that detects electrical arcing and interrupts power before damaged wiring or loose connections can cause further harm. AFCIs are commonly installed in circuit breakers or receptacles. They monitor circuit patterns that ordinary overcurrent protection may not recognize.

Quick Facts About AFCI

Key Takeaways About AFCI

AFCIs respond to arcing patterns, not only excessive current.
AFCI protection may be located at a breaker or receptacle.
An AFCI is not the same as a GFCI.

How AFCI Works

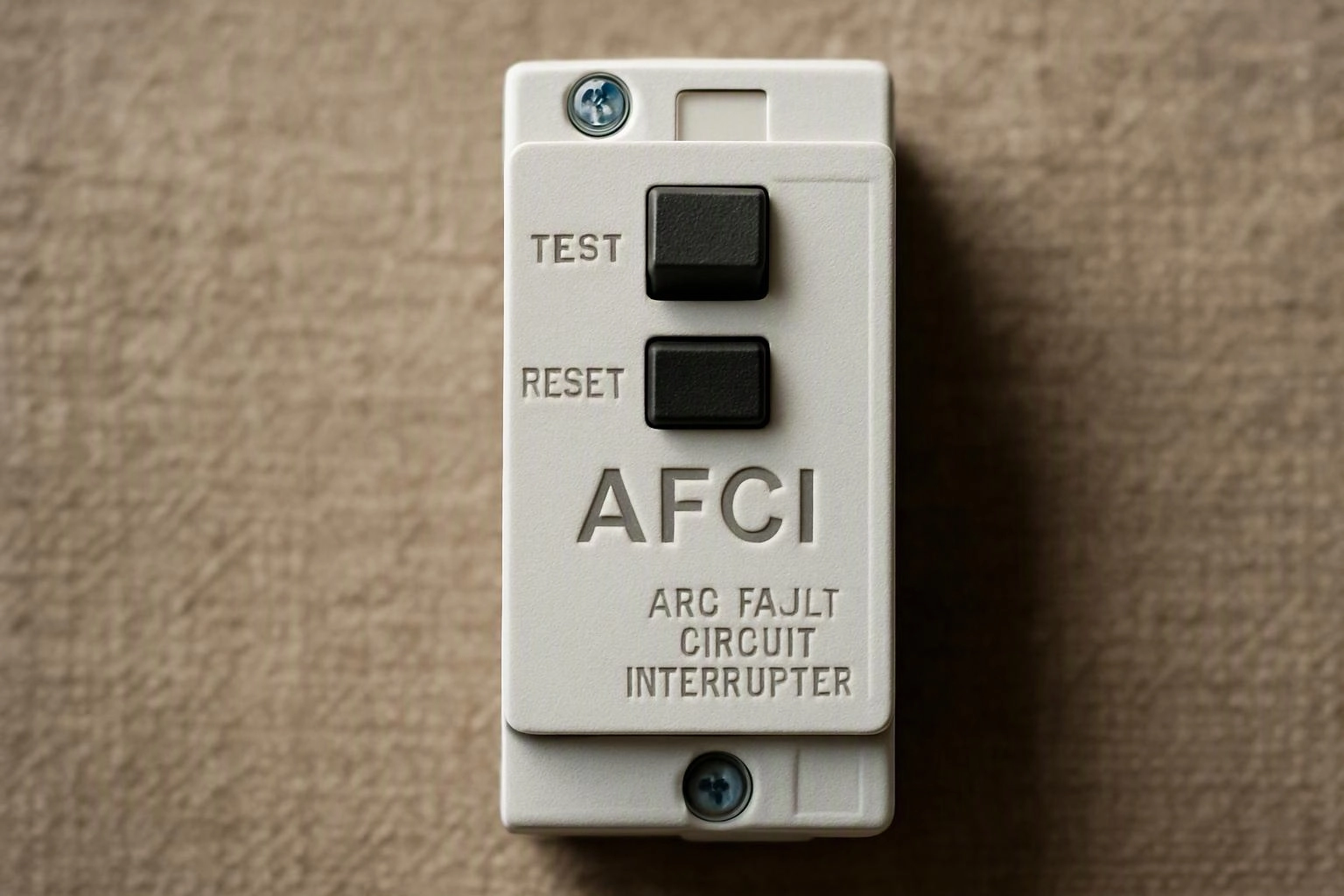

A white AFCI circuit interrupter with TEST and RESET buttons sits on a beige wall background

An AFCI monitors the electrical current moving through a circuit and looks for patterns associated with arcing. Arcing can occur when a conductor connection becomes loose or insulation becomes damaged. When the device identifies a harmful pattern, the AFCI opens the circuit and stops the flow of electricity.

Related glossary terms: Branch Circuit, Circuit Tracer, Receptacle.

An AFCI may be part of a circuit breaker or built into a receptacle. An ordinary circuit breaker primarily responds to overloads and short circuits, while an AFCI analyzes the character of the current itself. An AFCI also differs from a GFCI, which responds to an imbalance between incoming and returning current. During an electrical safety inspection, the device, wiring, connections, and test function are considered together.

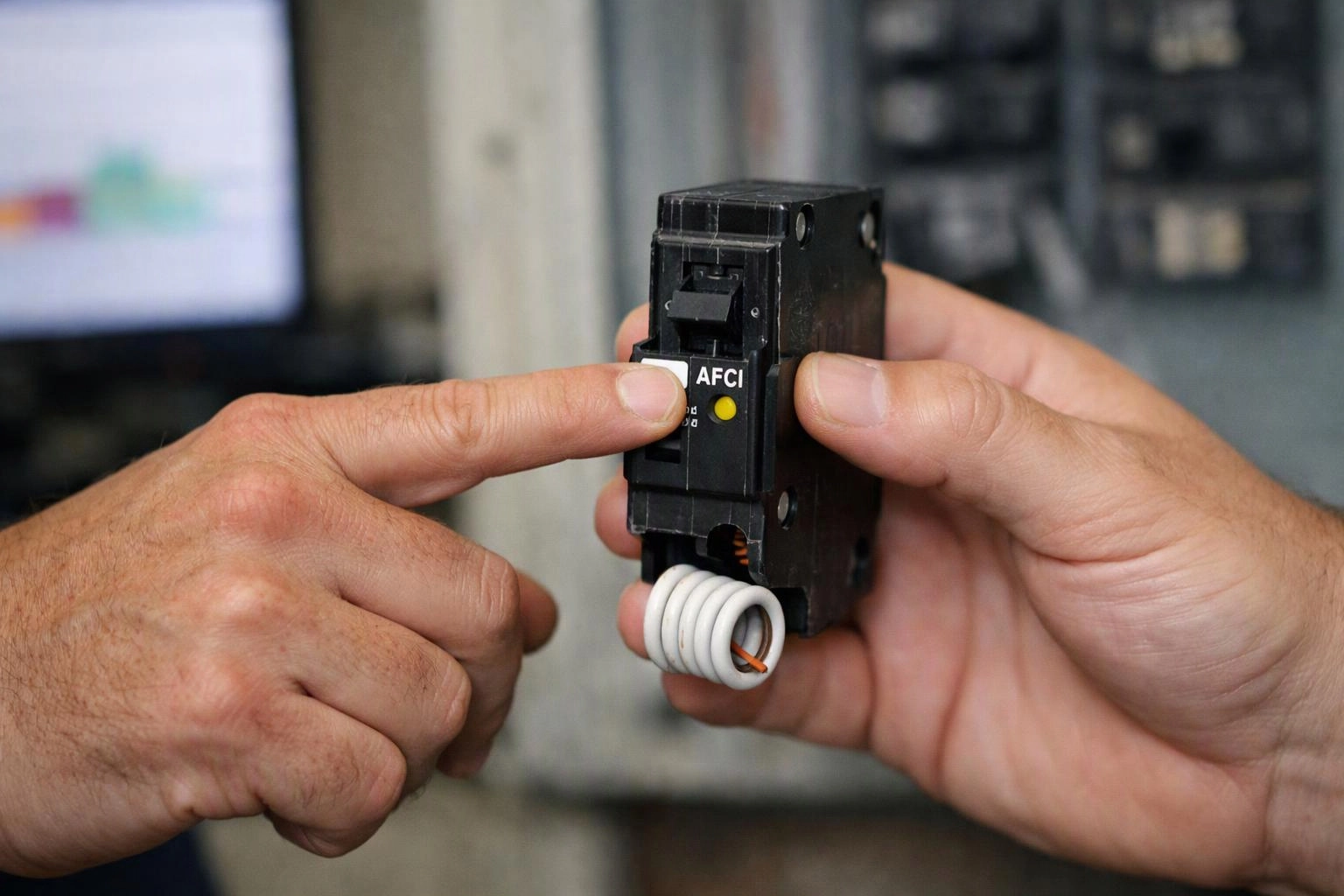

Two hands hold a black circuit breaker while one finger points at the AFCI label and button

From the Center Electric Service team

When we inspect AFCI protection, we check the device, its connections, the circuit wiring, and its test function as parts of one system. We also look for conditions that can cause nuisance trips, such as damaged conductors or loose terminations. Our team records concerns that need correction during the electrical safety inspection.

AFCI in Practice: A Real-World Example

A Riverside home may have an AFCI breaker serving a bedroom circuit. During an electrical safety inspection, the electrician tests the breaker and examines accessible wiring for loose connections or damage that could produce arcing.
