What Is a Circuit Tracer?
A Circuit Tracer is an electrical testing tool that identifies which circuit supplies a particular outlet, switch, fixture, or cable. The tool sends a signal through the circuit, then a receiver detects that signal along wiring or at the electrical panel. This process helps match field devices with their controlling breaker.
Quick Facts About Circuit Tracer
Category
Electrical testing tool
Used for
Identifying circuit connections
Common confusion
Different from a voltage tester
Also called
Circuit finder, Breaker Finder
Often discussed with
Electrical Troubleshooting
Key Takeaways About Circuit Tracer
- A tracer follows an electrical signal through wiring.
- The tool helps match devices with panel breakers.
- A circuit tracer is not the same as a voltage tester.
How Circuit Tracer Works

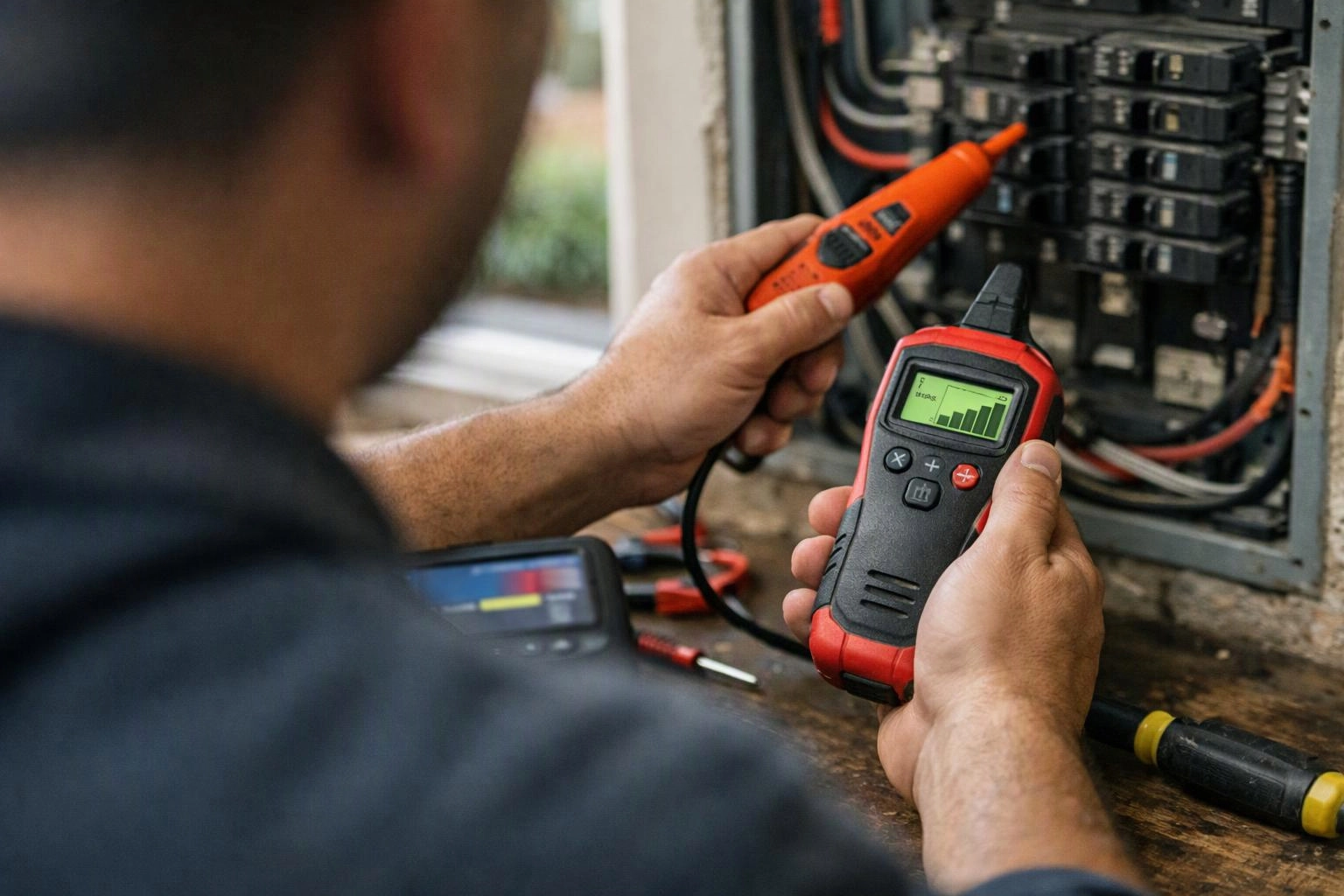

A Circuit Tracer sends a low-power identifying signal through a connected electrical path. A handheld receiver detects the signal near the panel or along accessible wiring. The strongest signal helps show which breaker controls the selected device. The result is a circuit match that supports accurate troubleshooting.
Related glossary terms: Branch Circuit, Continuity Test, Single-Pole Breaker.
A tracer works best when the target device has a continuous path to the panel. Loads, shared wiring, disconnected conductors, or damaged connections can weaken or interrupt the signal. A Branch Circuit may serve several devices, so tracing one outlet does not always identify every device on the same path. The technician confirms the result with appropriate electrical testing before work begins.
From the Center Electric Service team
When we troubleshoot an unidentified outlet or fixture, we connect the tracer at the device and follow its signal toward the panel. We compare the traced circuit with the panel labeling and confirm the finding through electrical testing. This helps us separate an incorrect label from a wiring fault.
Circuit Tracer in Practice: A Real-World Example

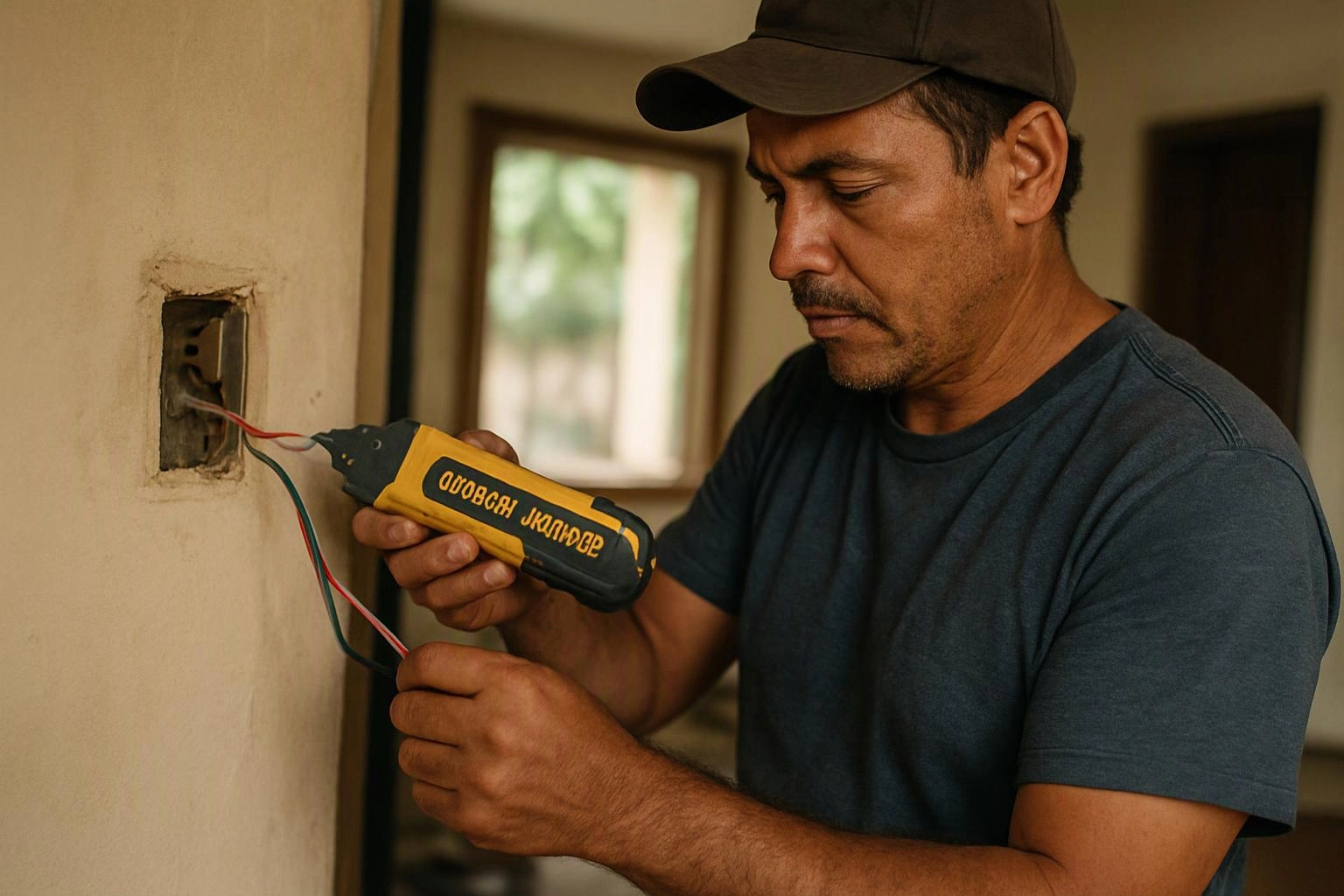

A Riverside homeowner finds an outlet that is not listed clearly at the panel. During Electrical Troubleshooting, a technician connects a circuit tracer at the outlet, identifies the controlling breaker, and checks whether nearby devices share that circuit.
