What Is Electric Vehicle Supply Equipment?
Electric vehicle supply equipment is a system that safely delivers electrical power from a building’s wiring to an electric vehicle. The system manages the connection between the vehicle and the electrical circuit, communicates charging status, and provides protective functions. EVSE includes wall-mounted charging units, cords, connectors, and related controls.
Quick Facts About Electric vehicle supply equipment
Category
Electric vehicle charging equipment
Used for
Delivering managed power to an electric vehicle
Common confusion
Often mistaken for the vehicle’s onboard charger
Also called
EV charging equipment, EVSE
Often discussed with
Electric Vehicle Charger Installation
Key Takeaways About Electric vehicle supply equipment
- EVSE manages the vehicle-to-circuit connection.
- Installation depends on available electrical capacity.
- EVSE is not the vehicle’s battery or onboard charger.
How Electric Vehicle Supply Equipment Works
Electric vehicle supply equipment controls the flow of electricity between a building circuit and an electric vehicle. The equipment confirms that the vehicle is connected before power flows. It can also signal charging status and stop or limit power when the connection changes.
Related glossary terms: Dedicated circuit, Electrical load calculation, Conduit.

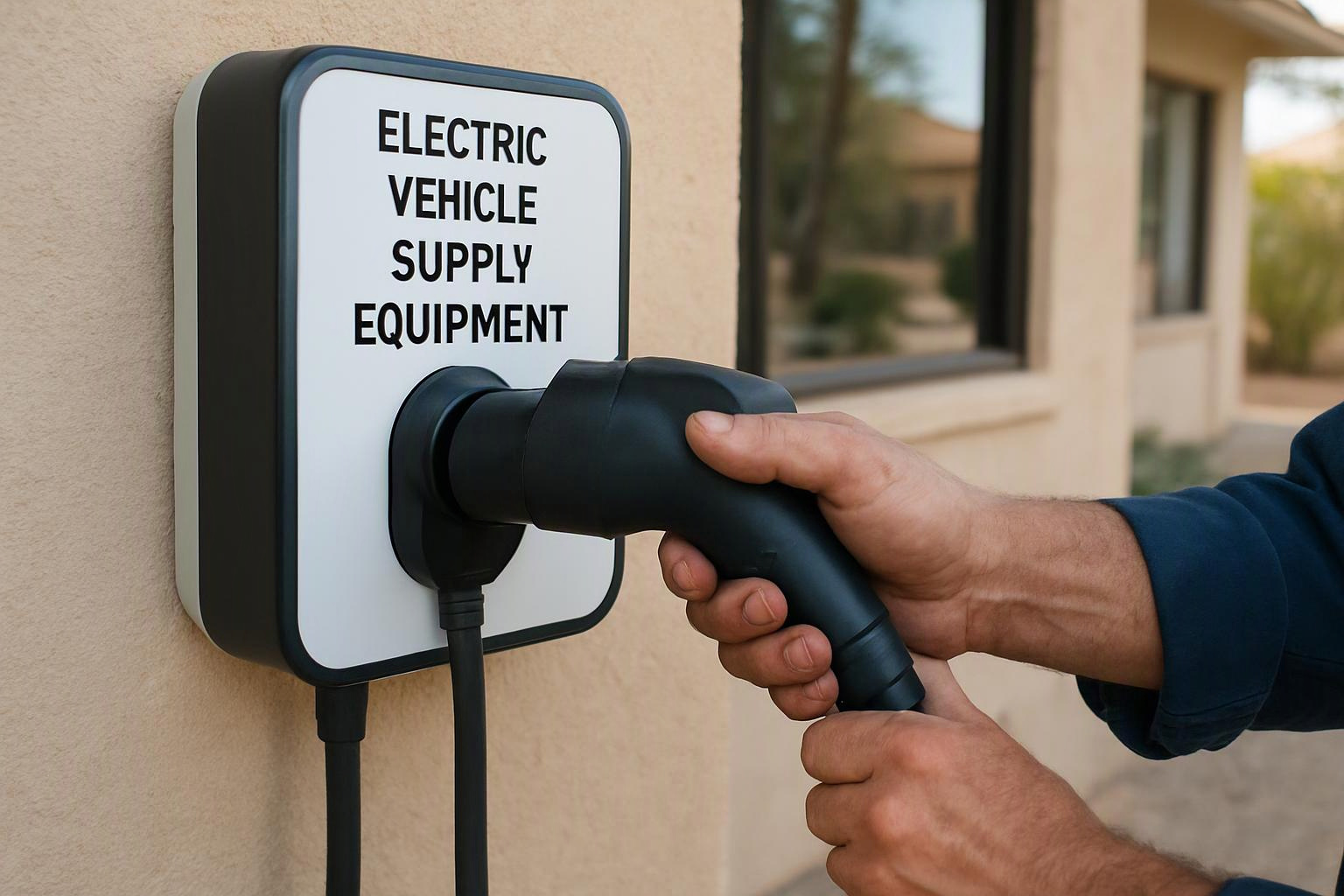

The vehicle’s onboard charger converts incoming power into the form the battery stores. EVSE provides the connection, communication, switching, and protective functions that support that process. A wall-mounted unit may connect to a dedicated circuit through wiring, conduit, and a vehicle charging connector. The installation must match the circuit, equipment, and location.
From the Center Electric Service team
When we assess electric vehicle supply equipment, we check the existing circuit, panel capacity, grounding, wiring path, and equipment connection. We also verify that the installation plan fits the vehicle’s charging equipment and the property’s electrical layout. Our team documents conditions that may affect the installation.
Electric vehicle supply equipment in Practice: A Real-World Example
A Riverside homeowner plans to charge an electric vehicle beside a garage. Center Electric Service evaluates the panel, routes wiring to the charging location, and connects compatible electric vehicle supply equipment to the appropriate circuit.
